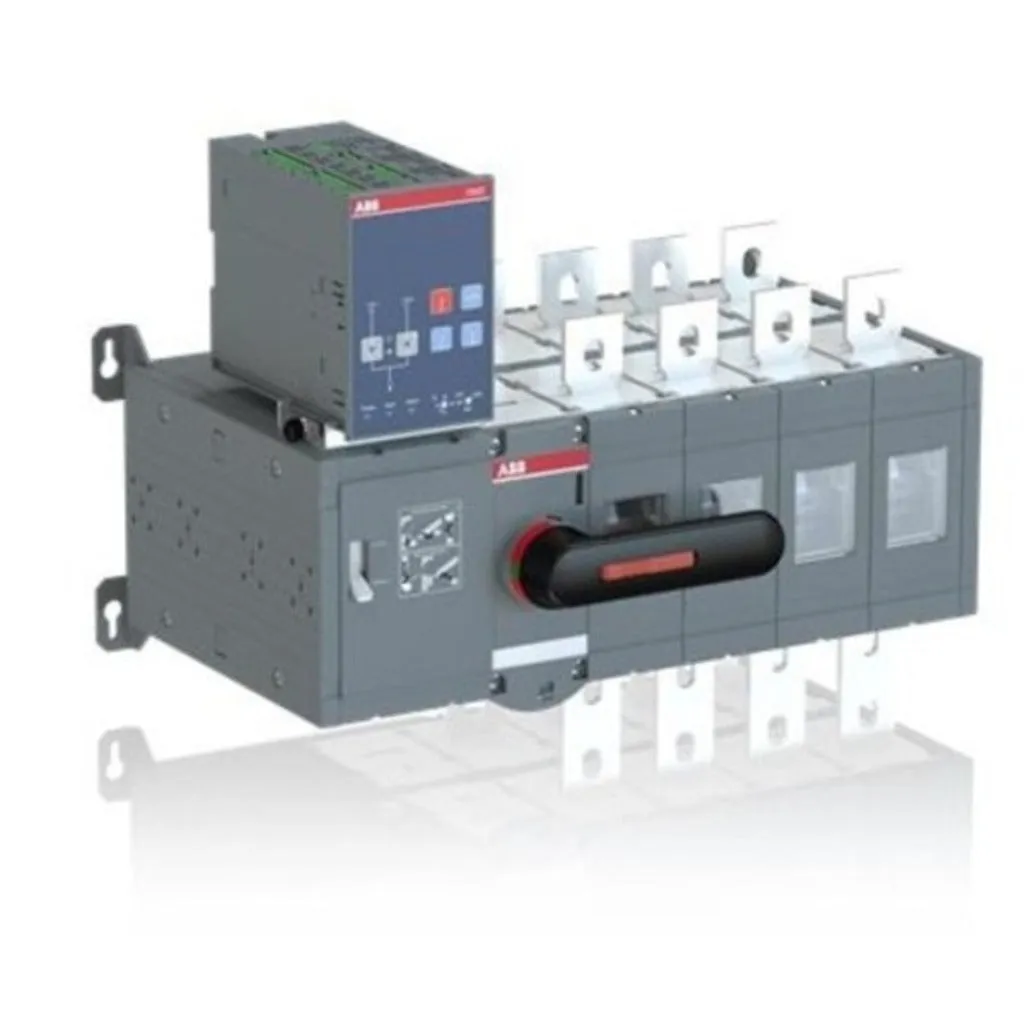

Product Description
-
Including a handle for manual operation, PCB connectors, bolt kit with nuts and washers for all terminals. Including a voltage sensing kit on the top of the switch
-
Voltage sensing kit on the bottom on the switch
-
Include a storage clip for the handle and spare fuses
Product Specification
|
Brand |
ABB |
|
Product Type |
Automatic Transfer Switch |
|
Model |
OTM800E4C3D230C |
|
Product Id |
1SYN108728R1001 |
|
Conventional Free-air Thermal Current (I th) |
q = 40 °C 800 A |
|
Conventional Thermal Current (Ithe ) |
Fully Enclosed 800 A |
|
Rated Impulse Withstand Voltage (U ) imp |
12 kV |
|
Rated Insulation Voltage (Ui ) |
1000 V |
|
Rated Operational Voltage |
1000 V |
|
Rated Short-time Withstand Current (I cw) |
for 1 s 8 kiloampere rms |
|
Motor Operational Voltage |
220 ... 240 V AC |
|
Power Loss |
25 W |
|
Pollution Degree |
3 |
|
Handle Color |
Black |
|
Handle Type |
Direct mounted handle |
|
Switches Operating Mechanism |
Mechanism at the End of the Switch |
|
Distance Between Phases |
Standard |
|
Position of Line Terminals |
Top In - Bottom Out, Bottom In - Top Out |
|
Operating Mode |
Front operated |
|
Controller Type |
OMD300 |
|
Mounting Type |
Base mounting |
|
Number of Poles |
4 |
|
Degree of Protection |
Front IP20 |
|
Product Net Width |
476 mm |
|
Product Net Height |
357 mm |
|
Product Net Depth / Length |
299 mm |
|
Product Net Weight |
23.8 kg |
